多列粉末包裝機常用來包裝以下產品：凍干粉/蛋白粉/代餐粉/咖啡粉/益生菌粉/中藥粉/固體飲料/奶茶粉/調味品/添加劑/可可粉/奶粉等類似物料。
多列粉末包裝機 特點及參數 EQUIPMENT FEATURE AND PARAMETER
可實現定制化多種計量方式
It can achieve various customized metering methods
可滿足審計追蹤、電子簽名、數據統計等功能
It can meet functions such as audit trails, electronic signatures, and data statistics
配置18.5寸超大工控屏，全新人機交互界面
Equipped with an 18.5-inch large industrial control screen and a newly designed human-machine interface
采用全伺服控制系統，提升OEE設備綜合效率
Uses a full servo control system to enhance OEE
符合EHS管理要求
Complies with EHS management reguirements
穩定速度可達70-80切/分鐘
Stable speed can reach 70-80 cuts per minute
具備自動充氮功能，殘氧可控制在2%以內
Equipped with an automatic nitrogen flling function,with residual oxygen controlled within 2%
可實現后端定制化整線多種解決方案，助力企業無人化生產
Can provide customized end-to-end solutions,supporting automation in production for businesses
|
型 號 Model |
MS-200 |
MS-500 |
MS-700 |
MS-900 |
|
列 數 Lane number |
1-4列(Lane) |
4-12列(Lane) |
4-18列(Lane) |
5-18列(Lane) |
|
計量方式 Measuring Mothod |
陶瓷泵Ceramic pump長螺桿Long screw短螺桿Short screw量杯Volumetric Cup數粒機electronic granulation counter |
|||
|
包裝速度 Capacity |
40-80袋/列/分鐘40-80 bags/Lane/minute |
|||
|
充填容量 Filling capacity |
粉劑powder:0.5-50g 顆粒劑Granule:0.5~30g 液體liquid:5-50ml 丸劑、片劑Pills、tablets:1-120pc |
|||
|
制袋尺寸 Sachet size |
長L:60-180mm寬W:15-70mm |
|||
|
膜寬 Film width |
最大膜寬Max.260mm |
最大膜寬Max.500mm |
最大膜寬Max.750mm |
最大膜寬Max.980mm |
|
封口形式 Sealing type |
背封Back sealing/Stick bag |
|||
|
切口形式 Cutting type |
平口切Straight cutting鋸齒切Zig zag cutting圓角切Round corner cutting異形切Die-cut |
|||
|
氣壓功率 Air&Power |
0.8Mpa/0.8-1.2m3/min;3.5-20kw |
|||
|
尺寸重量 Dimension&weight |
1750*1100mm/1300kg |
2400*1550mm/3000kg |
2400*1800mm/約3200kg |
2400*2050mm/約3500kg |

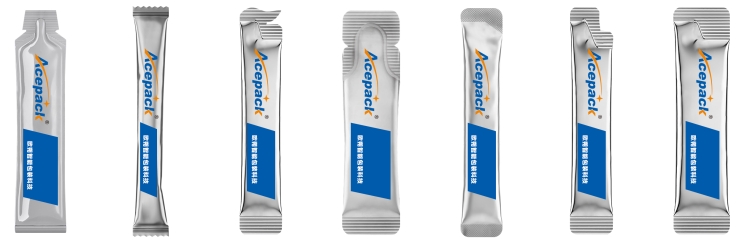

多列包裝機包裝樣袋：
